Switch

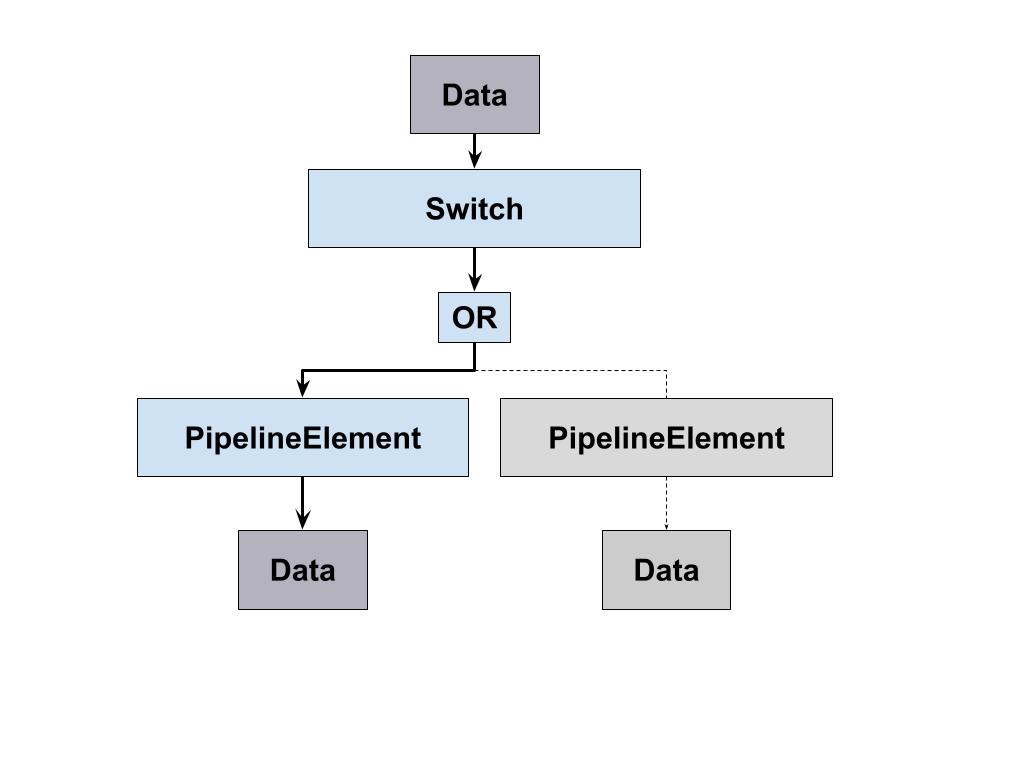

The PipelineSwitch element acts like an OR-Operator and decides which element performs best. Currently, you can only optimize the PipelineSwitch using Grid Search, Random Grid Search and Smac3.

In this example, we add two different transformer elements and two different estimators, and PHOTONAI will evaluate the best choices including the respective hyperparameters.

PHOTONAI Switch

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
from sklearn.datasets import load_breast_cancer
from sklearn.model_selection import KFold

from photonai.base import Hyperpipe, PipelineElement, Switch
from photonai.optimization import IntegerRange

# GET DATA
X, y = load_breast_cancer(return_X_y=True)

# CREATE HYPERPIPE
my_pipe = Hyperpipe('basic_switch_pipe',
                    optimizer='random_grid_search',
                    optimizer_params={'n_configurations': 15},
                    metrics=['accuracy', 'precision', 'recall'],
                    best_config_metric='accuracy',
                    outer_cv=KFold(n_splits=3),
                    inner_cv=KFold(n_splits=5),
                    verbosity=1,
                    project_folder='./tmp/')

# Transformer Switch
my_pipe += Switch('StandardizationSwitch',
                  [PipelineElement('StandardScaler'),
                   PipelineElement('MinMaxScaler')])

# Estimator Switch
svm = PipelineElement('SVC',
                      hyperparameters={'kernel': ['rbf', 'linear']})

tree = PipelineElement('DecisionTreeClassifier',
                       hyperparameters={'min_samples_split': IntegerRange(2, 5),
                                        'min_samples_leaf': IntegerRange(1, 5),
                                        'criterion': ['gini', 'entropy']})

my_pipe += Switch('EstimatorSwitch', [svm, tree])

my_pipe.fit(X, y)
